Flow Switch Scales

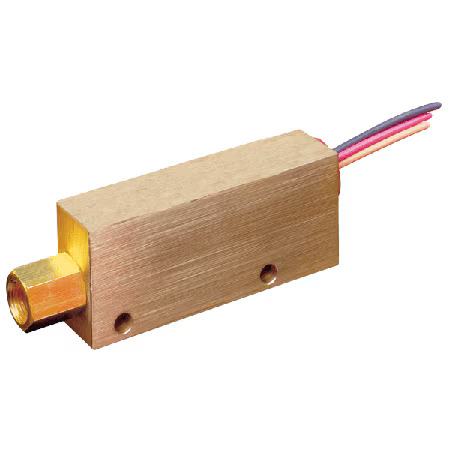

Brass Flow Switches, Piston Mechanism, 0.10-1.5 GPM, for Liquid Flow
Brass Flow Switches utilizes a piston-type design for accurate detection of excessive or insufficient flow rates. The switches have preset actuation points from 0.10 to 1.5 GPM for liquid flow. Product Applications Industrial cleaning equipment Detecting loss of fluid in hydraulic systems Assuring proper coolant flow in semiconductor processing
View Details

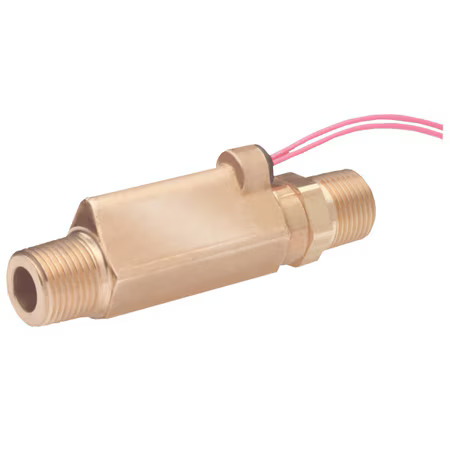

Brass High Pressure Flow Switches, 0.25-2.0 GPM, Industrial Use
High Pressure Brass Flow Switches are ideal for high in-line pressures. Set points range from 0.25 to 2.0 GPM for liquid flow. Product Applications Industrial cleaning equipment High pressure lubrication systems.
View Details

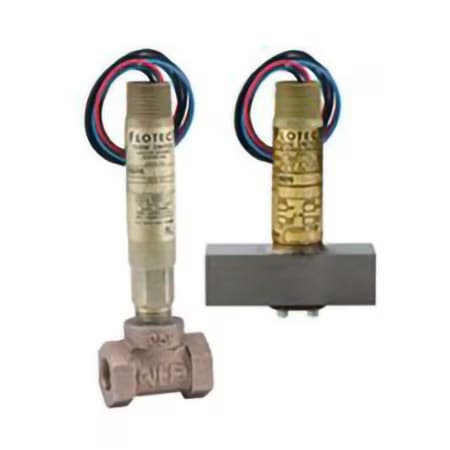

Compact Flow Switch
Flow Switch is surprisingly compact, and specifically engineered to monitor liquid, gas, or air flows. Time tested in thousands of pipeline installations and processing plants around the world, this Series is Weatherproof, designed to meet NEMA 4 and Explosion-proof (listing included in the specs). Tees are available for installation in pipelines from 1/2" to 2" (12.70 to 50.80 mm). With bushings added the unit is easily adapted to 1/4" and 3/8" (6.35 and 9.53 mm) piping. Product Applications Protects pumps, motors and other equipment against low or no flow Controls sequential operation of pumps Automatically starts auxiliary pumps and engines Stops liquid cooled engines, machines and processing when coolant flow is interrupted Shuts down burner when air flow through heating coil fails Controls dampers according to flow Signals alarm when emergency shower or eyewash station in use
View Details

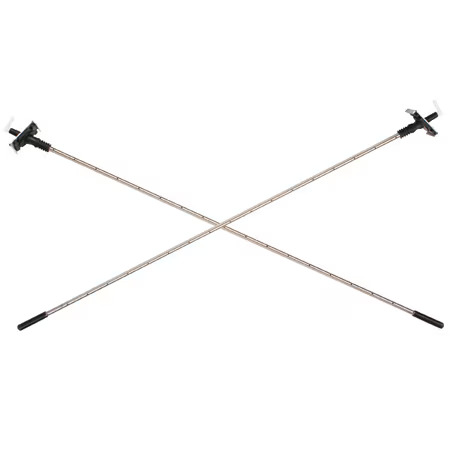

Duct-Mounted Pressure Sensor for Air/Gas Flow; Easy Install, 60" Ducts
Flow Grid is an outstanding simple yet accurate cost effective alternative to other duct mounted pressure sensors. Once installed and connected to a suitable measuring instrument, the device will provide years of trouble free monitoring of both air and gas flow. Installing the AFG Flow Grid is quick and easy, the AFG is supplied in kit form to allow both workshop and on-site installation into a wide range of square and circular ducts up to approximately 60". The AFG Flow Grid is a fundamental pressure sensing device designed to transmit a continuous differential pressure signal. When this output is connected to a suitable measuring instrument (i.e., manometer, pressure transducer, etc.), it may be used to determine air velocity and volume flow rate. How the AFG Flow Grid Works The AFG Flow Grid consists of two tubes mounted diagonally across a square or rectangular duct, or diametrically across a round duct. The tubes are drilled with a series of equi-spaced holes. The holes in one tube face directly upstream and sense total pressure, while the pairs of holes in the second tube also face forward but at an included angle of 79 degrees, sensing static pressure. The total and (sub) static pressures are averaged along the length of each tube and provide pressure signals at connectors outside the duct wall. The pressure differentials across these connectors constitute the output signal. Product Applications To display differential pressure, velocity or volume flow using a micro manometer, gage, or transmitter To give a warning of over or under flow rate using a pressure switch To control air supply in a system by connecting the grid to a pressure transmitter with an electrical output which can be used to feed into a control system To display differential pressure on a simple fluid manometer to give visual indication of changes in volume flow rate in the duct\
View Details

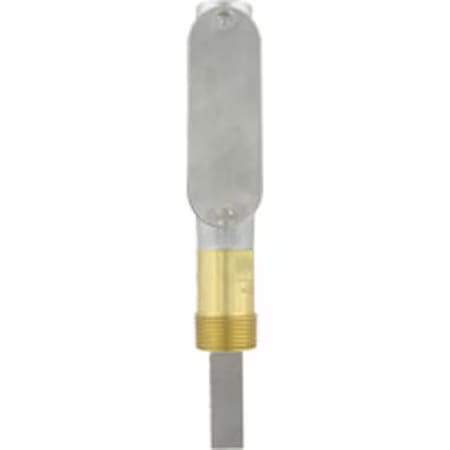

Flow Switch for Liquids, NEMA 4X, Ideal for Boilers & Pumps
Flow Switch is an inexpensive range switch for use with compatible liquids to start or stop electronic operated equipment when flow or no-flow conditions occur. Design is standard weatherproof, meeting NEMA 4X. Product Applications Proof of boiler flow Shuts down burner when air flow through heating coil fails Protects pumps, motors and other equipment against low or no flow Stops liquid cooled engines, machines and processing when coolant flow is interrupted.
View Details

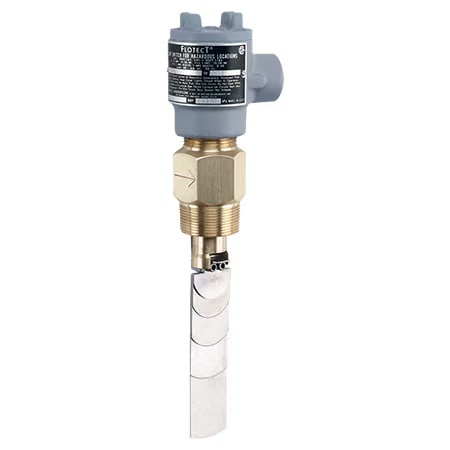

Flow Switches: Weatherproof, Explosion-Proof, Low Flow Protection
Flow Switches are rugged and reliable, ideal for automatically protecting equipment and pipeline systems against damage from reduction or loss of flow. Time tested in thousands of pipeline installations and processing plants around the world this Series is Weatherproof, designed to meet NEMA 4 and Explosion-proof (listing included in the specs). This series can be used in pipes 1-1/2" (38.10 mm) and up. Product Applications Protects pumps, motors and other equipment against low or no flow Controls sequential operation of pumps Automatically starts auxiliary pumps and engines Stops liquid cooled engines, machines and processing when coolant flow is interrupted Shuts down burner when air flow through heating coil fails Controls dampers according to flow
View Details

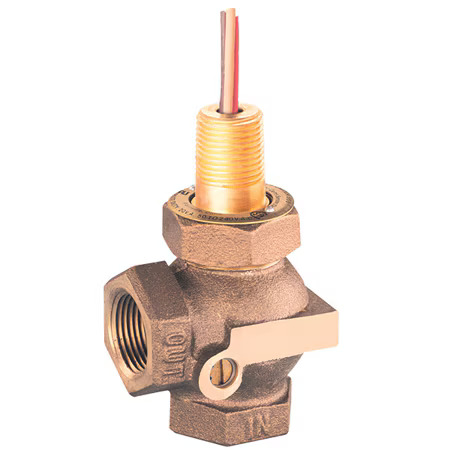

Globe Flow Switch for Water/Oil – ± 1% Repeatability – Easy Adjustment
Globe Flow Switch provides accurate flow detection in water and oil with ±1% repeatability. A shuttle bypass vane inside the housing is controlled externally using an ordinary flat blade screwdriver, allowing flow settings to be changed without disassembly. Each switch is constructed of noncorrosive materials and resists shock and vibration. The Series G9 is suitable for triggering alarms on interlocking shutdown circuitry when flow rate is incorrect and for protecting bearings, gears, and cooling systems.
View Details

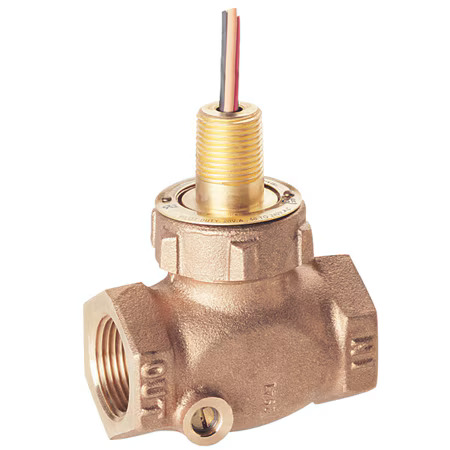

Globe Valve Flow Switches ± 1% Repeatability, Adjustable for Liquids
Globe Valve Switches offer accurate flow detection with 1% repeatability and external adjustability over a broad range of flow settings for compatible liquids. Product Applications Detection of improper flow rates in high volume lubrication Low flow detection in cooling lines Flow detection in process systems
View Details

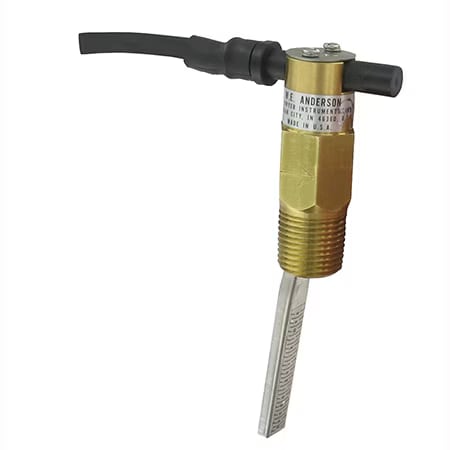

Mini-Size Flow Switches
The Mini-Size Flow Switches is designed to provide inexpensive, reliable monitoring of the presence or absence of flow in a system. This series is available for field installation in pipelines from 1/2 to 2" diameter and available in brass or 303 SS body. Product Applications Proving flow in boilers, hot water heaters, and chillers Protects pumps, motors and other equipment against low or no flow Automatically starts auxiliary pumps and engines
View Details

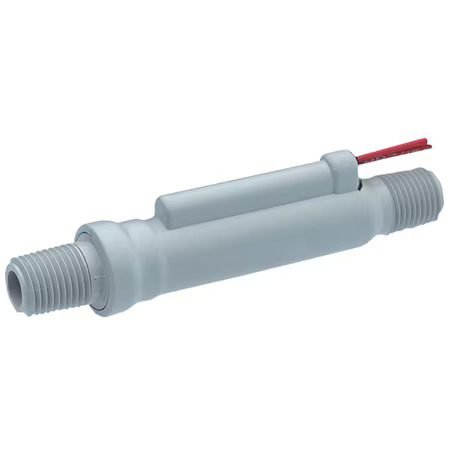

Piston Flow Switch for Air/Water, 0.05-1 GPM, SPST Reed, FDA Compliant
Flow Switch utilizes a piston-type design for both air and pure water applications. The switches have preset actuation points from 0.05 to 1.0 GPM for water and 25 CFH to 5 CFM for air. The piston design incorporates a hermetically sealed SPST magnetic reed switch. The P2 is comprised of PPE & PS (polyphenylene ether and polystyrene) housing and piston and 316 Stainless Steel spring and stop pin. All wetted parts are FDA compliant. Economical and superior design make this an excellent switch for pure water equipment, filter life monitoring, heat exchangers, and cooling applications. Product Applications Pure water equipment Filter life monitoring Heat exchangers Cooling applications
View Details

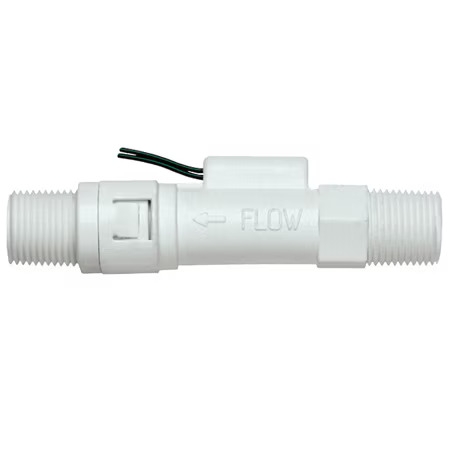

Polypropylene Flow Switches – 3/8" or 1/4" NPT for Water & Cooling Systems
Polypropylene Flow Switches fit almost any piping requirements with compatible liquids. Choose the inlet and outlet port to be 3/8" male NPT or 1/4" male “Quick Disconnect° then select a quick disconnect acetal adapter for straight through flow or with a shut off valve. Product Applications Pure water equipment Filter life monitoring Heat exchangers Cooling applications
View Details

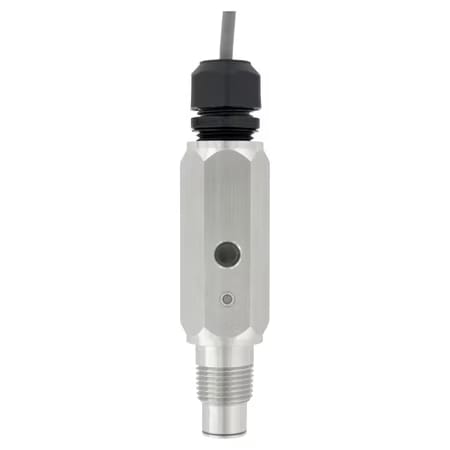

Thermal Dispersion Flow Switch
Thermal Dispersion Flow Switch is a thermal flow switch that indicates whether the flow rate is above or below a user set flow rate. The unit incorporates two LED status indicators providing visual switch indication. The set flow rate (setpoint) is easily field adjustable with included magnet and the unit has both NO and NC NPN outputs. Product Applications Boiler flow proving Hot water heaters Chillers Liquid transfer systems
View Details

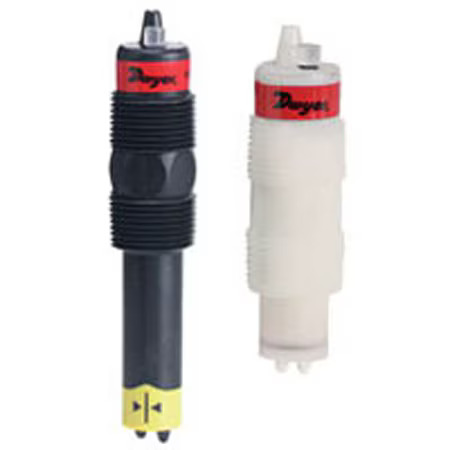

Thermal Flow Switch for Non-Coating Liquids, Adjustable SPDT Output
Thermal Dispersion Flow Switch offers solid state flow detection of non-coating liquids for pump and process protection. SPDT output allows for interfacing with remote PLC or relay control device. The adjustable switch point is factory calibrated at 0.2 fps with LED indication of flow and calibration status. Units feature selectable NO or NC operation and are not damaged by over-ranging flow velocities.
View Details

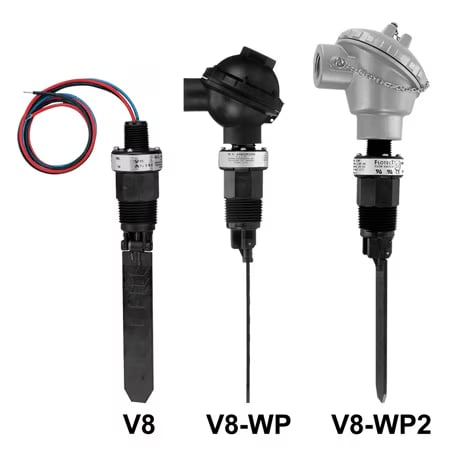

Vane Flow Switch for 1-6 in Pipes, 150 psig, 212 °F - Chemical & HVAC Use
Vane Operated Flow Switches are ideal for protecting unattended equipment from damage or loss of production. This Series is available for installation in a 1 to 6" pipe with operating pressures are up to 150 psig (10 bar) and temperatures to 212°F (100°C). Product Applications Chemical processing Air conditioning Refrigeration Heating systems Cooling lines Machinery Liquid transfer systems Water treatment Food processing Machine tools
View Details

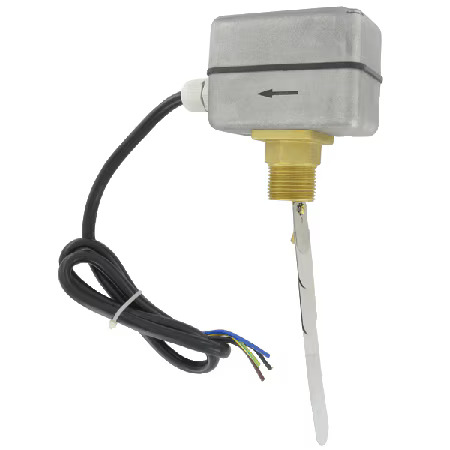

Vane Flow Switch for Boilers & Heaters, Adjustable 1-8 in Pipes
Vane Flow Switches offers an economical flow proving solution. The FS-2 paddles are adjustable to fit 1 to 8" size pipe.
View Details
