Flow Valve Scales

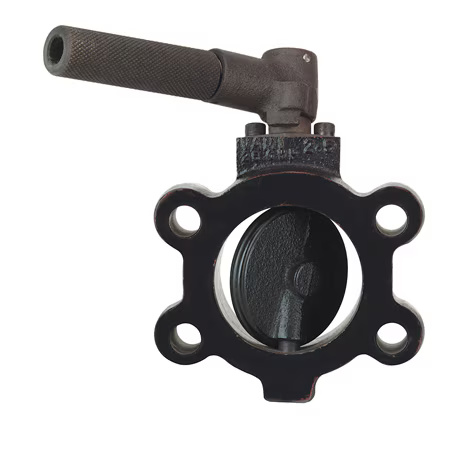

Butterfly Valves for Hydraulic Shut-off, 25 psi, O-ring Seal, Detent Lock
Butterfly Valves are an ideal low cost hydraulic reservoir shut off valve. These valves are designed to meet the demanding needs of the fluid power industry. Unique features include an O-ring flange face seal complying with S.A.E. J518 dimensional requirements. This design provides for bubble tight reservoir shut off up to 25 psi (1.72 bar) and a maximum temperature of 180°F (82.2°C). The compact envelope dimension reduces space requirements. Unit allows for adjustment by incorporating an open/close detent position lock which can be infinitely positioned to achieve a desired flow rate. The unique design resists the vibrations associated with hydraulic pumps and pumping systems. Optional fluoroelastomer seals and locking handle are available. Product Applications Hydraulic reservoir isolation on injection molding or earth moving equipment Used to isolate the hydraulic reservoir during maintenance
View Details

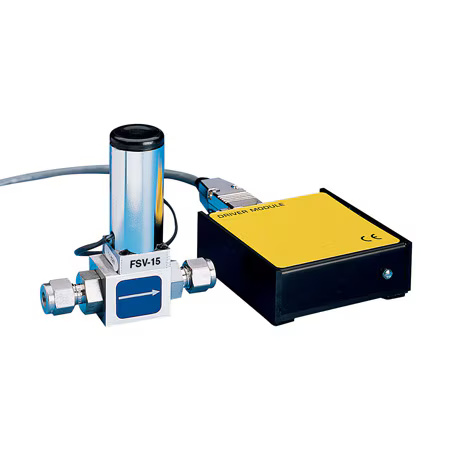

100:1, 1/4 in Compression, 316ss, Electronic Proportioning Valves
The FSV10 Series electronic proportioning solenoid valves can control the flow of a wide variety of gases and liquids. The variablestroke electromagnetic valve is pulsed by the driver electronics, maintaining the correct magnetic flux level in the solenoid and holding flow at the level of the analog input setpoint signal. A TTL-level input allows the valve to be shut off regardless of analog setpoint signal. The output power level of the driver electronics is jumper selectable for cooler, more efficient operation. The FSV10 Series requires 12 to 30 Vdc, supplied by the optional FSV-PW 110 Vac plug-in power supply or via the 9-pin D connector (included). These valves come with 8 inches of wire, which must be soldered to the 9-pin D connector.
View Details

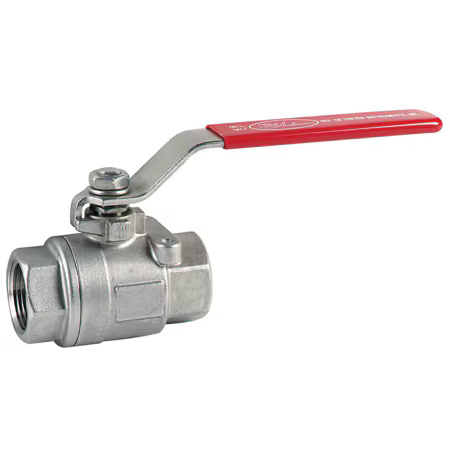

2-Piece SS Ball Valve, 316 SS Stem, Full Port, 1000 psig, Chemical Use
Two-Piece Stainless Steel Ball Valve is the economical choice for high quality, SS ball valves for use in chemical, petrochemical, pulp and paper and general applications. The Series BV2M body and endcaps are constructed of investment cast SS, while stem is 316 SS. Seats and body seals are 15% glass reinforced PTFE providing broad media compatibility and bubble tight shutoff to 1000 psig (69 bar). Internally loaded, blowout-proof stem provides safety in the event of overpressure. Full port design allows for maximum Cv with minimal pressure drop. Integral actuator mounting pads allows for ease of automation. Product Applications Gas or liquid flow control
View Details

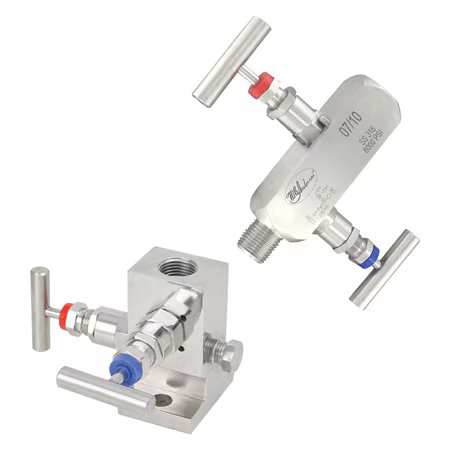

2-Valve Block Manifold, 316 SS, for Oil/Water/Chemicals, Direct Mount
Product Overview Applications Chemical Refineries, Chemicals, Fuel and Gas, Oil, Petrochemical Materials 304 Stainless Steel Materials, Wetted 316 Stainless Steel, PTFE Media Compatibility Compatible Liquids, Gases, Steam Process Temperature, Max 464 °F Proof Pressure Up to 6000 psi Vent Size 1/4 in Vent Type NPT Female
View Details

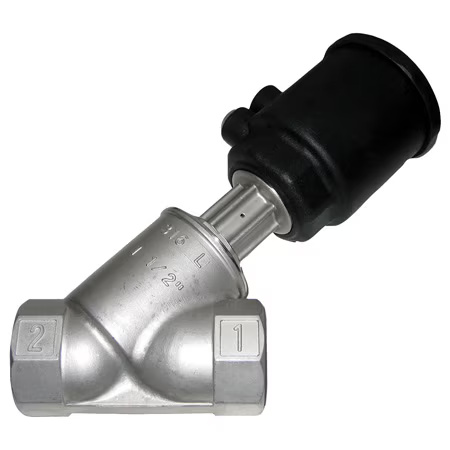

2-Way, NC, Pilot Operated, Bi-Driectional, 316 SS Valve
The AAV-1100B Series of airoperated stainless steel angle seat valves are ideal for use in a wide range of industrial applications that require bidirectional flow. The unique construction permits the use of these valves with a wide range of fluids including steam, select liquids and gases, vacuum. The valve stem has a self-aligning gland which together with the floating seal assures maximum integrity. The PTFE seal material is used as standard for maximum fluid compatibility.
View Details
2-Way, NC, Pilot Operated, Bi-Driectional, Bronze Valve
The AAV-1000B Series of airoperated bronze angle seat valves are ideal for use in a wide range of industrial applications that require bi-directional flow. The unique construction permits the use of these valves with a wide range of fluids including steam, select liquids and gases, vacuum. AAV-1025B shown smaller than actual size. The valve stem has a self-aligning gland which together with the floating seal assures maximum integrity. The PTFE seal material is used as standard for maximum fluid compatibility.
View Details

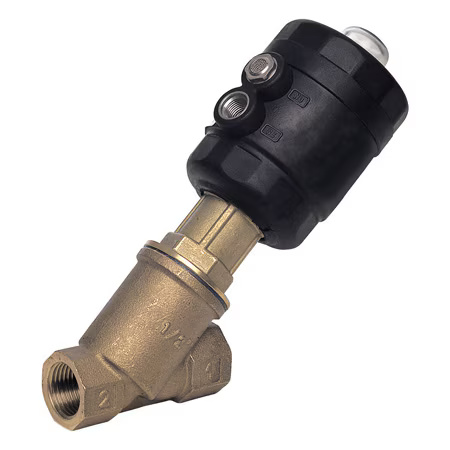

2-Way, NC, Pilot Operated, Bronze Compact Valve
The AAV-1000C Series of airoperated bronze angle seat valves are ideal for use in a wide range of industrial applications that require compact design. The unique construction permits the use of these valves with a wide range of fluids including steam, select liquids and gases, vacuum. The valve stem has a self-aligning gland which together with the floating seal assures maximum integrity. The PTFE seal material is used as standard for maximum fluid compatibility.
View Details

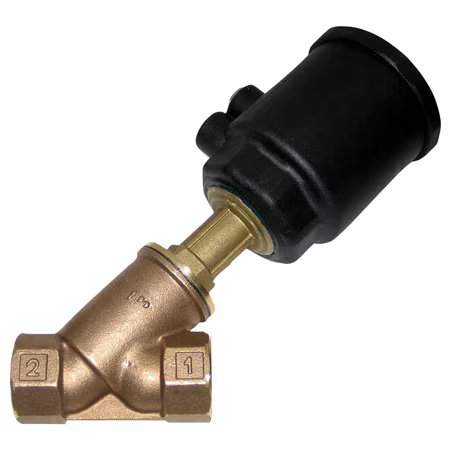

2-Way, NC, Pilot Operated, Bronze Valve
The AAV-1000 Series of air operated bronze angle seat valves are ideal for use in a wide range of industrial applications. The unique construction permits the use of these valves with a wide range of fluids including steam, select liquids and gases, and vacuums. The valve stem has a self-aligning gland which together with the floating seal assures maximum integrity. The PTFE seal material is used as standard for maximum fluid compatibility.
View Details

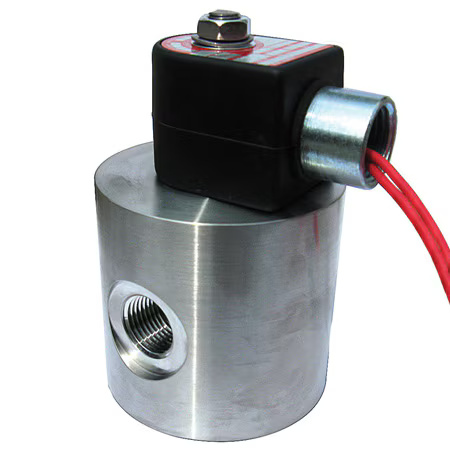

2-Way, NO, NC, 316 SS, High Flow Very High Pressure Solenoid Valves
The new SVH-120 Series is a versatile, ¼ or ½" full port, high pressure, pilot operated, solenoid valve. The SVH-130 Series is a compact size, for where space is limited. The compact SVH-120 Series is ideal for flow control of high pressure air, water, compressed natural gas (CNG), hydrogen, nitrogen, and other gases or light liquids compatible with the materials of construction, and leverages this high pressure flow to its own advantage in operating effectively and efficiently. The SVH-120 style valve is perfect for use in hydrogen dispensing tanks, commonly used in the refueling of fleet vehicles. It is also a used in many compressed natural gas applications. With available pressures to 10,000 psig there are a wide range of applications that include water, nitrogen and many other compatible liquids. This solenoid valve must be mounted with the solenoid upright and vertical.
View Details

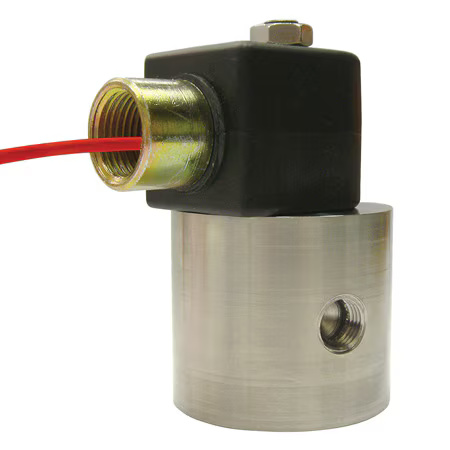

2-Way, NO, NC, 316 SS, Low Flow Very High Pressure Solenoid Valves
The SVH-110 Series direct acting solenoid valves are normally closed valves that open when energized and close when de-energized. When the coil is energized the plunger lifts the piston off the valve seat, opening the valve. Upon de-energizing the coil, a spring closes the piston to seat it. The normally open valve operates similarly, closing when energized and opening when de-energized. No minimum pressure is required. The SVH-110 Series are used to control the flow of high pressure air, water, hydrogen, nitrogen and other gases or light liquids compatible with materials of construction. They are also suitable for cryogenic applications.
View Details

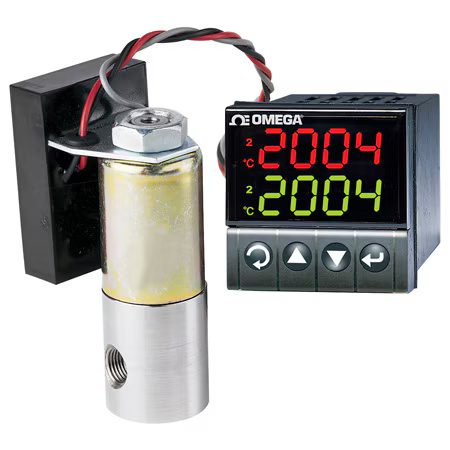

20:1 Electronic Proportioning Valves for Gas
The OMEGA® PV100 Series comprises economical proportional valves for use with gases. They combine a solenoid valve with an electronics package that digitally modulates the control signal to provide analog proportional control without the expense or complexity of stepper motors, servo valves, or other proportioning devices. The PV100 Series can be used in open- or closed-loop systems to control flow, pressure, temperature, speed, or position parameters of gases.
View Details

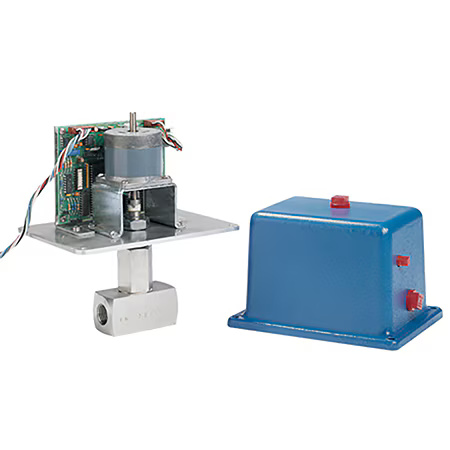

200:1, NEMA 4 (IP66), Electronic Proportioning Valves
An electronically controlled proportioning valve (ECV) will take an electrical input signal (usually 4 to 20 mA) and proportion the amount of flow through a pipe from fully closed to fully open. These valves are used in industrial automation controls as proportional actuators and other industrial control applications. The OmegaTM ECV valve features programmable reverse or direct acting control. Direct acting means that, as the current signal rises, the valve allows more flow, while reverse acting will decrease the flow rate with an increasing current signal. These units can also be programmed to sense a failure in the current loop and fully close/ open the valve upon the signal levels dropping below 4.0 mA. Dry contact remote switches can be used in conjunction with the standard current signal to provide an alarm signal which fully closes/opens the valve. The rugged epoxy-coated aluminum package insures NEMA-4X protection or the powerful microprocessor and servo actuator.
View Details

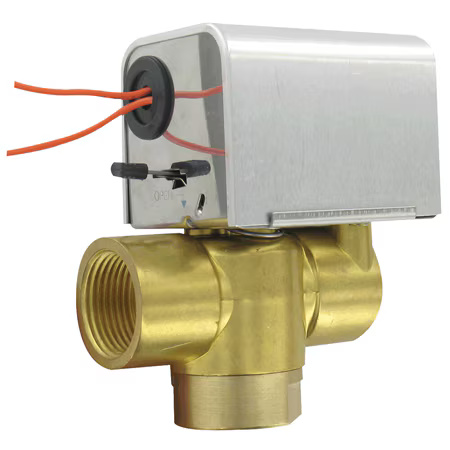

3-Way Electric Zone Valve for HVAC – 1/2 to 1 in, 24/120 VAC, Easy Install
Zone Valves are ideal for flow control in hot and cold water HVAC systems. The 3ZV1 is electrically driven to open and spring to close. Units are available in 1/2", 3/4", and 1"; sizes with 24 or 120 VAC power supply. Easy to install these units are direct replacements for competitor units. Manual override lever is easily accessible externally. Consult factory for 220 VAC power supply, optional auxiliary switches, and BSP or sweat connections.
View Details

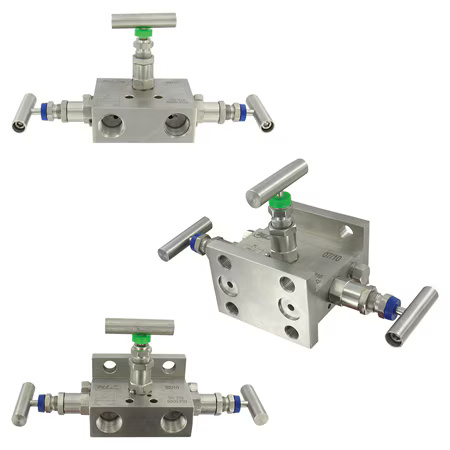

316 SS 3-Valve Block Manifold for Oil, Water, Chemicals & Steam
Product Overview Applications Chemical Refineries, Chemicals, Fuel and Gas, Oil, Petrochemical Materials 304 Stainless Steel Materials, Wetted 316 Stainless Steel, PTFE Media Compatibility Compatible Liquids, Gases, Steam Process Temperature, Max 464 °F Proof Pressure Up to 6000 psi
View Details

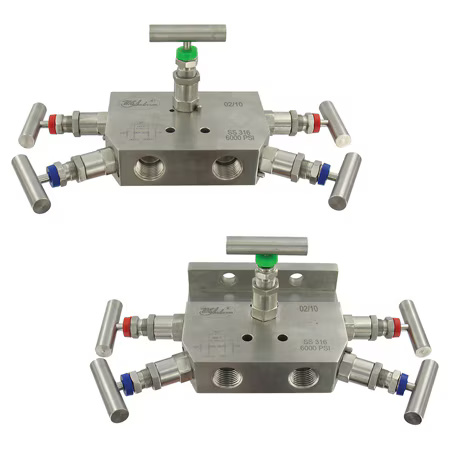

5-Valve Block & Bleed Manifold, 316 SS for Oil, Water, Air & Steam
Product Overview Applications Chemical Refineries, Chemicals, Fuel and Gas, Oil, Petrochemical Materials 304 Stainless Steel Materials, Wetted 316 Stainless Steel, PTFE Media Compatibility Compatible Liquids, Gases, Steam Process Connection Size 1/2 in Process Temperature, Max 464 °F Proof Pressure Up to 6000 psi Vent Size 1/4 in Vent Type NPT Female
View Details

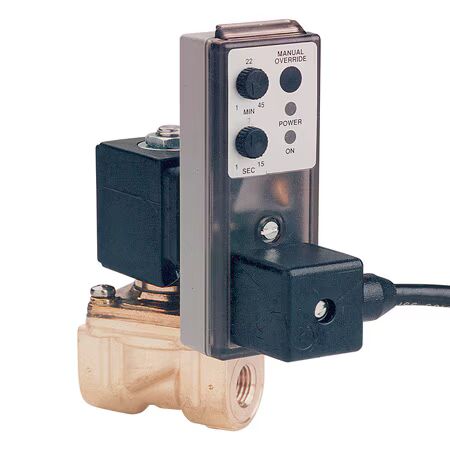

Adjustable timing Electronic Drain Valve
Product Overview Duty Cycle 100% Enclosure Material Black Polyester Materials, Wetted Brass, Copper, FKM, Stainless Steel Media Compatibility Gases, Liquids Power Consumption 8 W Process Connection Type NPT Female Process Temperature, Max 54 °C Process Temperature, Min 1 °C Supply Voltage 115 Vac Valve Closed Time Adjustable 1 to 45 minutes Valve Open Time Adjustable 1 to 15 seconds Valve Position Normally Closed Voltage Tolerance ±10% SPECIFICATIONS Mounting Position: Any (preferably with solenoid system upright) ON Time: Adjustable 1 to 15 sec OFF Time: Adjustable 1 to 45 min Power: 115 Vac, 60 Hz Voltage Tolerance: ±10% Min/Max Temperature: 1 to 54°C (35 to 130°F) Duty Cycle: Continuous (100%) Coil Molding Material: Black Polyester (Class F): SV8COIL-115 AC, SV8COIL-220 AC Black Epoxy Resin (Class H): All 14 Watt coils Valve Materials of Construction Body: Brass Armature Tube: Stainless Steel 300 Fixed Core: Stainless Steel 400 Plunger: Stainless Steel 400 Spring: Stainless Steel 300 Shading Ring: Copper Orifice: Brass
View Details

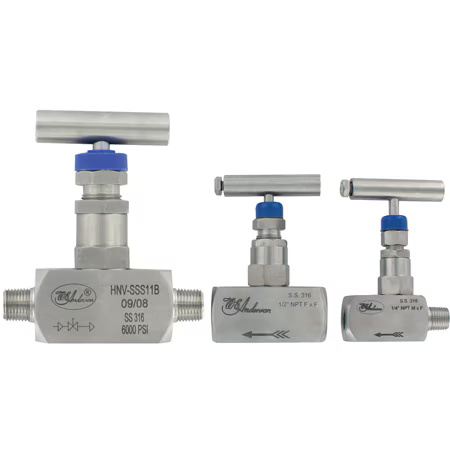

Barstock Needle Valves – 316 SS & PTFE – Corrosion-Resistant - 1/8 to 1 in
HNV Block Manifolds is a barstock style needle valve that is designed for isolating instruments from liquids or gases. The valve series features fine threading and large seat area to ensure tight shutoff. Wetted materials are 316 SS and PTFE making these ideal for use with corrosives. The HNV has been tested to assure vibration and thermal stability. Body includes a lock pin to prevent accidental bonnet disengagement. The HNV is available in male x female and female x female connections from 1/8" to 1". Tee handle is constructed of 316 SS and allows low torque operation.
View Details

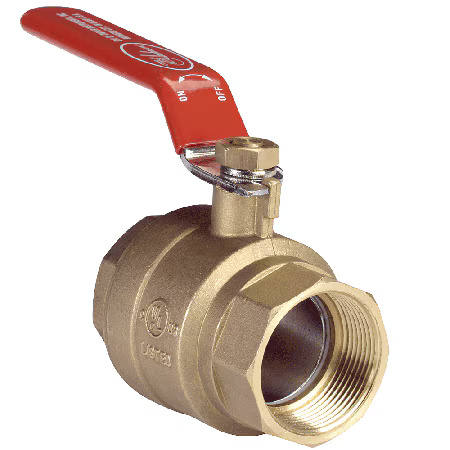

Brass Ball Valve for Gas & Liquid Control, Manual Shut Off, Full Port
Brass Ball Valve is an economical hand lever ball valve ideal for commercial or general industrial use. The Series DBV is the ideal choice for a manual shut off valve, along with many other applications. Valve body, body cap and ball are made of a quality brass for great durability. Seats and stem packing are constructed of PTFE for long lasting service as well. Blowout-proof stem provides safety in the event of overpressure. Full port design allows for maximum Cv while still retaining minimal pressure drop.
View Details

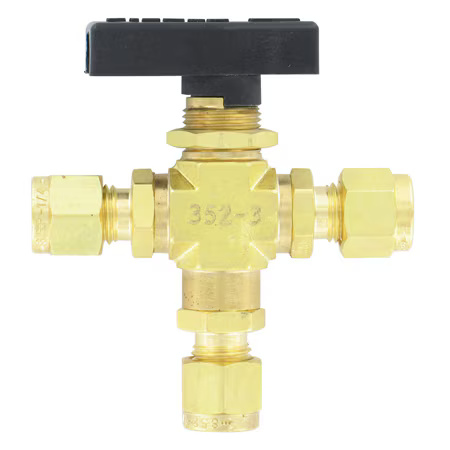

Compact 3-Way Ball Valves – Brass/Stainless Steel, PTFE Seats, High Pressure
Compact 3-Way Ball Valves are the perfect choice for directional control of fluid in instrumentation and process systems. The micro finished ball and PTFE seats ensure quality seal and easy operation. The straight through flow path design allows for minimal pressure drop. The valve body comes in either brass or 316 stainless steel, offering a variety of options. Blow-out-proof ball and stem provides extra durability and safety in the event of over pressure.
View Details

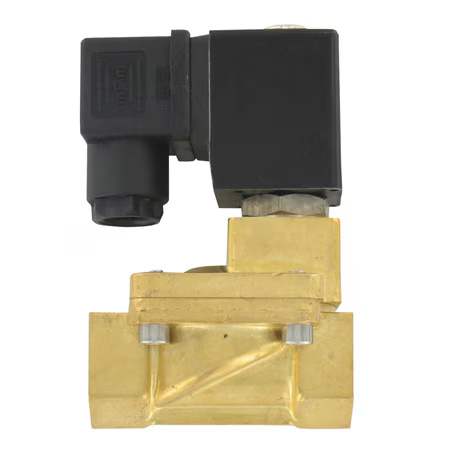

Compact Brass 2-Way Solenoid Valve, NC, for Air, Gas & Liquids, 176°F Max
Solenoid Valve is compact, general-service, two-way guide type solenoid valves for air, gas, water and other liquid applications. They are available in brass with a normally closed design and can be oriented in any position. The solenoid enclosure provides protection against dust, while also protecting against seepage of oil and noncorrosive coolants. The Series SBSV-B valves come assembled with an NBR seal, having a maximum process temperature of 176°F (80°C). The series offers a wide range of valve sizes and flow ranges, with connection sizes from 1/8" to 2" NPT and orifices from 3 mm to 50 mm.
